PSO Implementation

• Implementation of PSO on Custom Neural Network.
• Removed Backpropagation and in-turn Gradient Descent and use Particle Swarm Optimization technique for Neural Network Training.

Swarm Intelligence

• Particle

  class Particle:

      def __init__(self, random, position=[0.],
                   velocity=[0.], position_range=None,
                   velocity_range=None, dims=None, alpha=0.1):
          self._validate(random, position, velocity, position_range, velocity_range, dims, alpha)

          self.random = random
          self.position = position
          self.velocity = velocity
          self.position_range = position_range
          self.velocity_range = velocity_range
          self.dims = dims
          self.alpha=alpha

          self._init_particle()

          self.pbest = self.position


• ParticleSwarmOptimizer

  class ParticleSwarmOptimizer:

      def __init__(self, particle_cls, c1, c2, n_particles,
                   fitness_fn, compare_fn, n_iter=1, dims=None,
                   random=True, particles_list=None, position_range=None,
                   velocity_range=None):
          self._validate(particle_cls, c1, c2, n_particles,
                         fitness_fn, compare_fn, n_iter, dims,
                         random, particles_list)

          self.particle_cls = particle_cls
          self.c1 = c1
          self.c2 = c2
          self.n_particles = n_particles
          self.n_iter = n_iter
          self.fitness_fn = fitness_fn
          self.compare_fn = compare_fn
          self.position_range = position_range
          self.velocity_range = velocity_range
          self.dims = dims
          self.random = random
          self.particles_list = particles_list

          self._init_particles_list()


Neural Network

• Layer

  class Layer:

      def __init__(self, in_units, units, activation):
          self.w_shape = (in_units, units)
          self.b_shape = (1, units)
          self.n_wts = in_units * units + units
          self.shape = (-1, units)
          self.activation = activation

      def _reshape_weights(self, wts):
          W = np.reshape(wts[:self.w_shape[0] * self.w_shape[1]], self.w_shape)
          b = np.reshape(wts[self.w_shape[0] * self.w_shape[1]:], self.b_shape)
          return W, b

      def forward(self, wts, x):
          W, b = self._reshape_weights(wts)
          return self.activation(np.dot(x, W) + b)


• Model

  class Model:

      def __init__(self):
          self.layers = []
          self.n_wts = []
          self.compiled = False

      def add_layer(self, layer):
          self.layers.append(layer)
          self.n_wts.append(layer.n_wts)

      def _calc_dims(self):
          return int(np.sum(self.n_wts))

      def compile(self, loss_fn, dataloader_cls, metric_fn=None, c1=2.,
                  c2=2., n_workers=10, batch_size=32, batches_per_epoch=100,
                  position_range=(-1, 1), velocity_range=(-1, 1)):

          self.dataloader_cls = dataloader_cls
          self.data_loader = partial(dataloader_cls, batch_size=batch_size,
                                    repeat=True, shuffle=True)
          self.metric_fn = metric_fn

          self.loss_fn = partial(loss_fn, layers=self.layers, n_wts=self.n_wts, dims=self._calc_dims())

          self.optimizer = partial(ParticleSwarmOptimizer, particle_cls=Particle, c1=c1,
              c2=c2, n_particles=n_workers, compare_fn=lambda x, y: x < y,
              n_iter=batches_per_epoch, dims=self._calc_dims(), random=True,
              position_range=position_range, velocity_range=velocity_range)

          self.compiled = True

      def _forward(self, X, wts):
          w_index = 0
          for i, layer in enumerate(self.layers):
              X = layer.forward(wts[w_index:w_index+self.n_wts[i]], X)
              w_index += self.n_wts[i]
          return X

      def fit(self, X, y, epochs=1):
          assert self.compiled, 'Call compile before training'

          data_loader = self.data_loader(X=X, y=y).get_generator()
          loss_fn = self.loss_fn(data_loader=data_loader)
          if isinstance(self.optimizer, partial):
              self.optimizer = self.optimizer(fitness_fn=loss_fn)

          for epoch in range(epochs):
              print('Epoch {}/{}'.format(epoch+1, epochs))
              self.optimizer.optimize()
              if self.metric_fn is not None:
                  print('Metric: {}'.format(self.metric_fn(y, self.predict(X))), end='\t')
              print('Loss:', self._loss(X, y))

      def predict(self, X):
          assert self.compiled, 'Call compile before Prediction'

          data_loader = self.dataloader_cls(X,
              batch_size=32, repeat=False, shuffle=False).get_generator()
          y = []
          for X in data_loader:
              y.append(self._forward(X, self.optimizer.gbest))
          return np.vstack(y)

      def _loss(self, X, y):
          data_loader = self.dataloader_cls(X, y,
              batch_size=32, repeat=False, shuffle=False).get_generator()
          loss_fn = self.loss_fn(data_loader=data_loader)
          y = []
          try:
              while True:
                  y.append(loss_fn(self.optimizer.gbest))
          except StopIteration:
              return np.mean(y)


Activation Functions

• Relu

  def relu(x):
      return np.maximum(x, 0)


• Leaky_relu

  def leaky_rely(x, alpha=0.01):
      nonlin = relu(x)
      nonlin[nonlin==0] = alpha * x[nonlin == 0]
      return nonlin


• Sigmoid

  def sigmoid(x):
      return 1 / (1 + np.exp(x))


• Softmax

  def softmax(x):
      e_x = np.exp(x - np.max(x))
      return e_x / e_x.sum()


• Tanh

  def tanh(x):
      return np.tanh(x)


Dataset

Mnist Dataset from Kaggle.

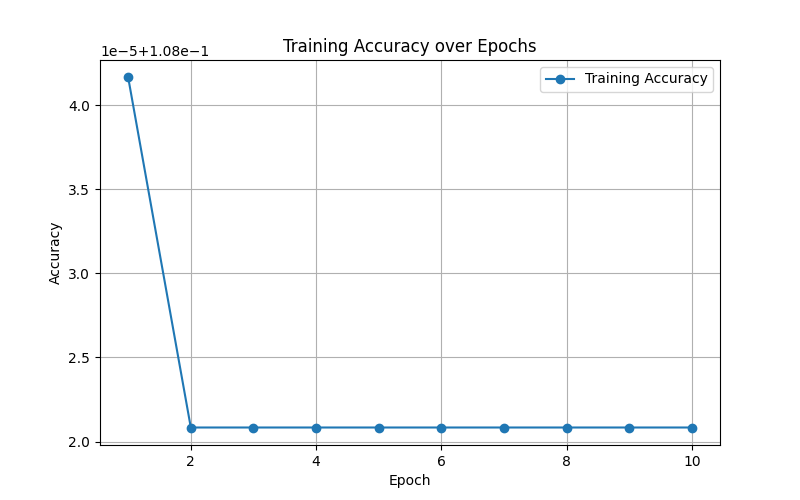

Training Accuracy

Fitness Fuctions

• Loss saved values over running on Epoch=10.

Using pyswarm and keras to optimize neural network models

• The NoteBook containing training NN using brest_cancer dataset and optimized using PSO

pyswarm performance

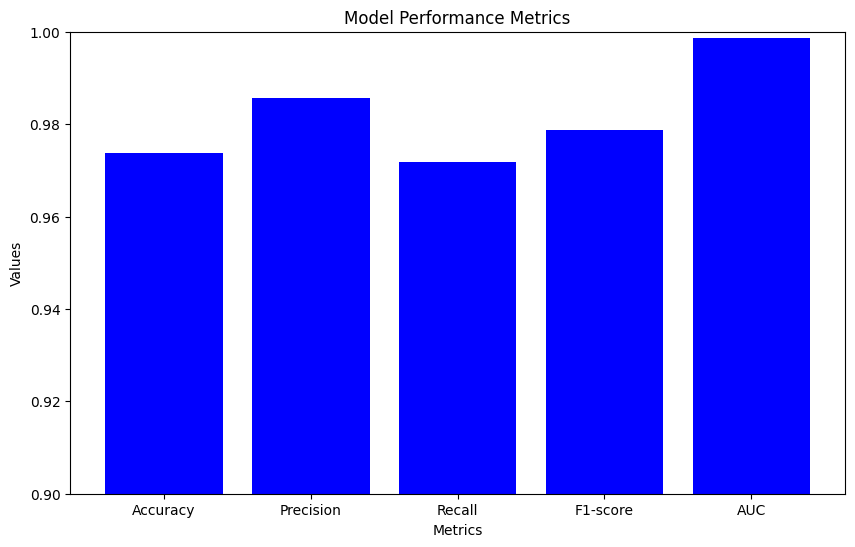

Without PSO:

• Loss:

  Validation loss: 0.06128723919391632


• Performance Metrics:

  Accuracy: 0.9736842105263158
  Precision: 0.9857142857142858
  Recall: 0.971830985915493
  F1-score: 0.9787234042553191
  AUC: 0.998689813298395

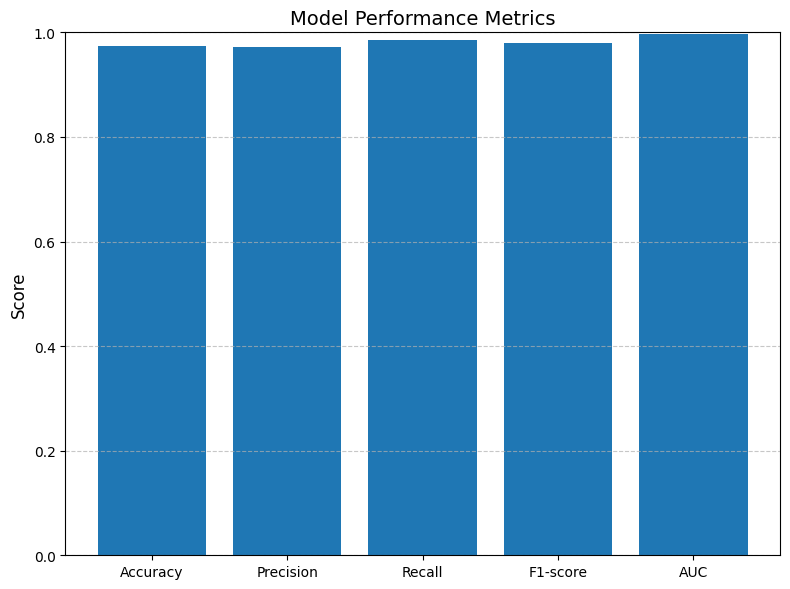

With PSO

• Loss:

  Validation loss: 0.06511683017015457


• Performace Metrics:

  Accuracy: 0.9736842105263158
  Precision: 0.9722222222222222
  Recall: 0.9859154929577465
  F1-score: 0.979020979020979
  AUC: 0.9963969865705864


Refrence

• Repo on PSO
• GFG overview on PSO

Paper on Swarm Intelligence

• Particle Swarm Optimization: A Comprehensive Survey @Paper
• Distributed Swarm Learning for Edge Internet of Things @Paper
